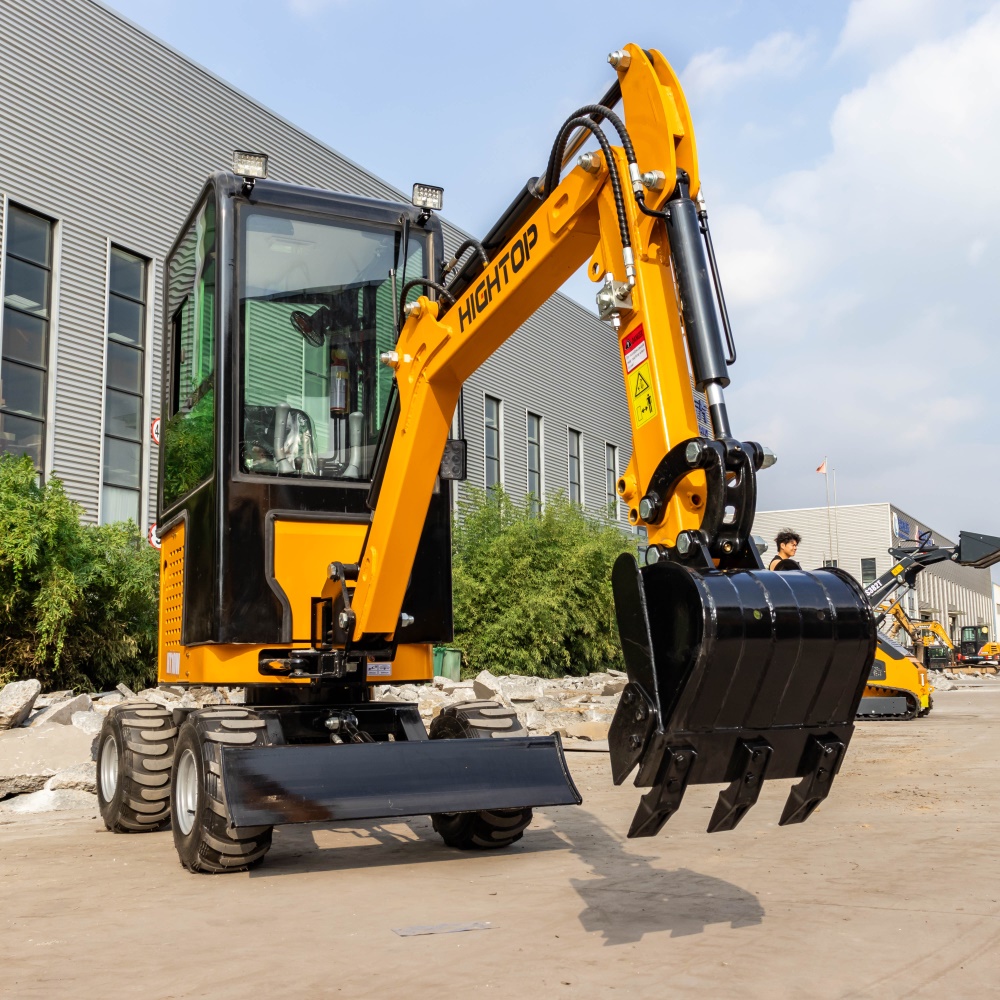

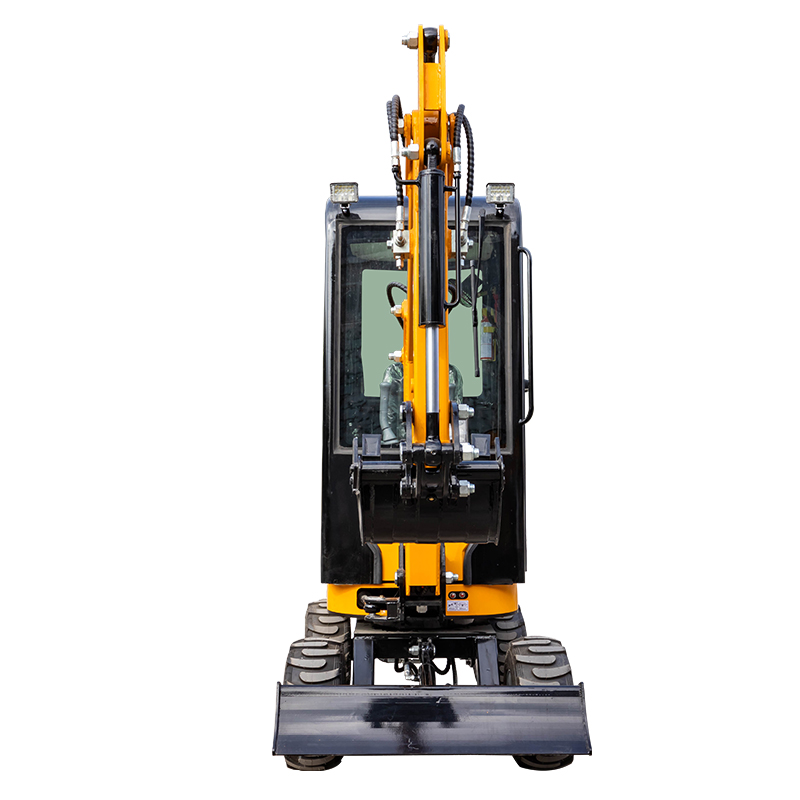

The HT-10W is a 1-ton micro wheeled hydraulic excavator manufactured by Shandong Hightop. As a compact and flexible small wheeled excavator, it is capable of self-movement and is primarily used for earthwork, municipal, and landscaping operations in narrow or confined areas. The machine is CE-certified and is widely deployed in both domestic projects and export markets.
|

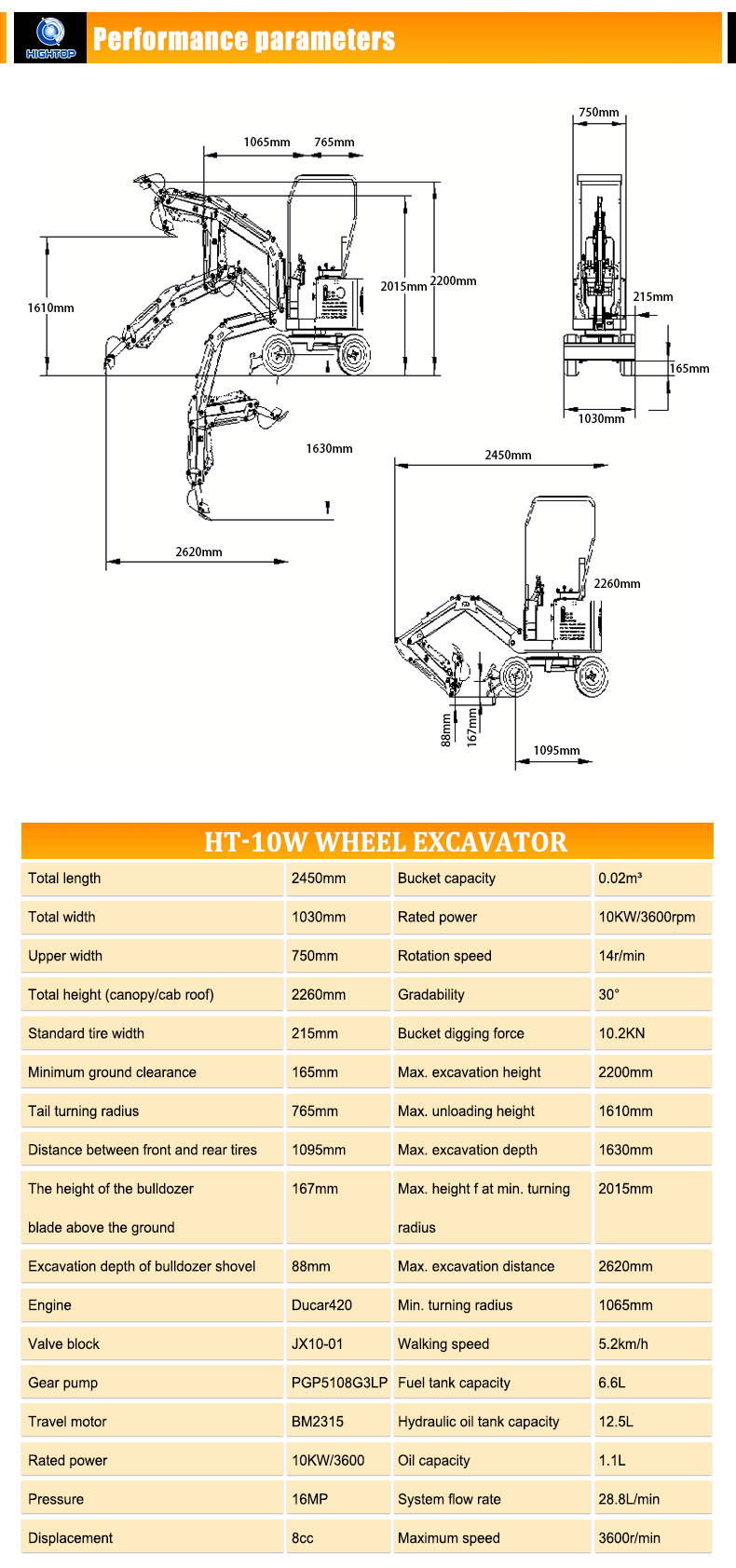

HT10W Micro-Digging Parameter Table |
|
|
Overall machine dimensions ( mm) |
|
|
Total length / Transport length A |
2450mm |
|
Total width B |
1030mm |
|
Upper width D |
750mm |
|
Total height (roof of the shed / roof of the cab) C |
2260 |
|
Standard tire width F |
215mm |
|
Minimum ground clearance H |
165mm |
|
Tail turning radius I |
765mm |
|
Distance between the front and rear tires J |
1095mm |
|
Height of the bulldozer blade above the ground (R) |
167mm |
|
Tamping shovel digging depth |
88mm |
|
Performance parameters |
|
|
Volume capacity M^3 |
0.02m³ |
|
Rated power |
10KW/3600rpm |
|
Rotational speed |
14r/min |
|
Climbing ability |
30° |
|
Bucket digging force |
10.2KN |
|
Operating range (mm) |
|
|
Maximum excavation height a |
2200mm |
|
Maximum unloading height b |
1610mm |
|
Maximum excavation depth c |
1630mm |
|
Maximum excavation distance d |
2620mm |
|
Minimum turning radius e |
1065mm |
|
Maximum height at the minimum turning radius f |
2015mm |
|
Main components |
Model |
|
Engine |
Dajiang 420 |
|
Rated Power |
10KW/3600rpm |
|
Engine Oil Capacity |
1.1L |
|
Valve Bank |
JX10‑01 |
|
Gear pump |
PGP5108G3LP |
|
Walking motor |
BM2315 |
|
Fuel tank |
Capacity: 6.6 liters |
|
Hydraulic oil tank |
Capacity: 12.5 liters |
|
Pressure |
16MP |
|
Displacement |
8cc |
|
Walking speed |
3.2km/h |
|
System throughput |
28.8L/min |
|
Maximum rotational speed |
3600r/min |
