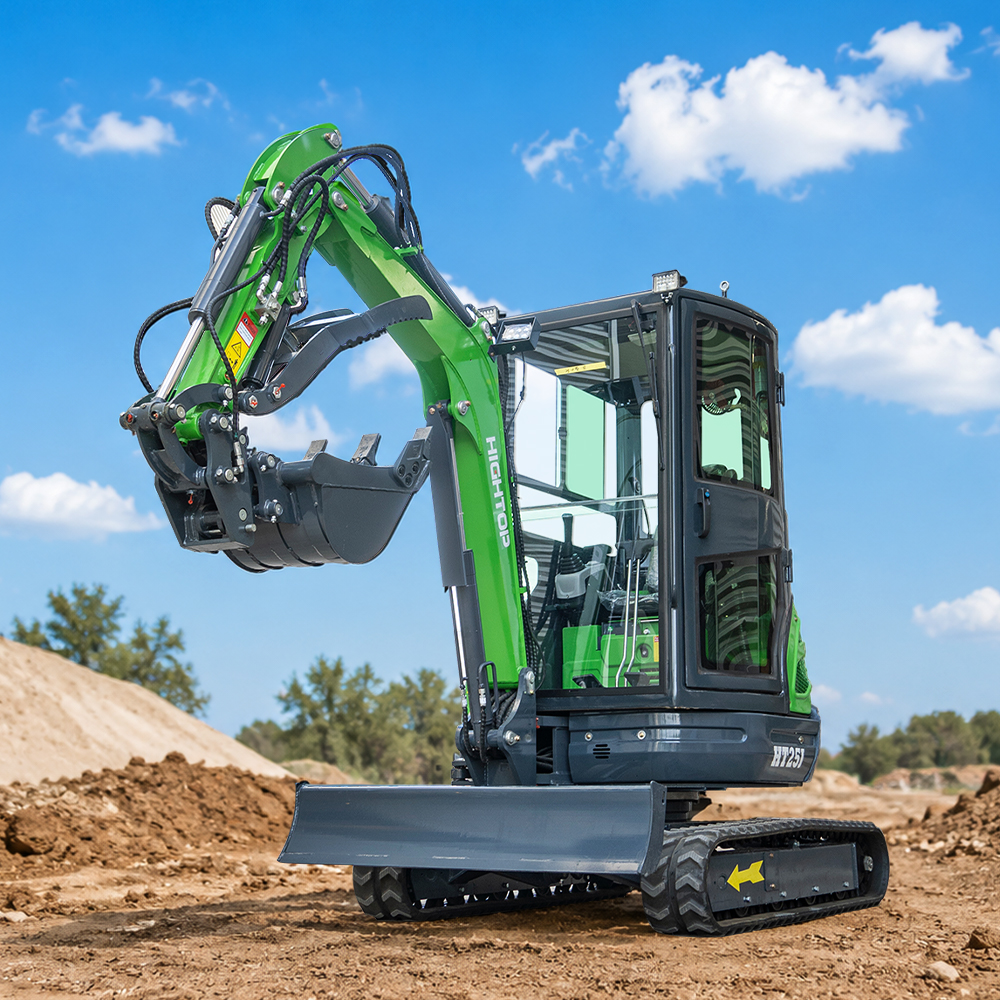

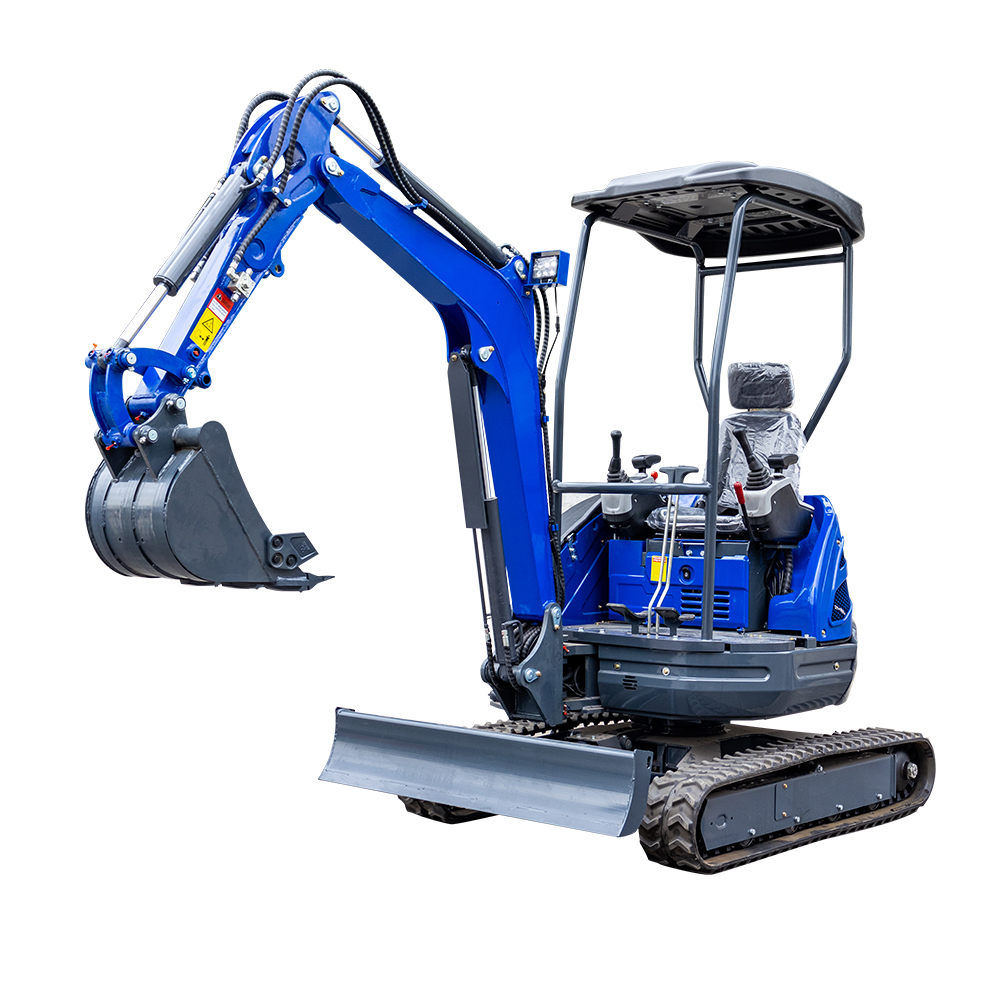

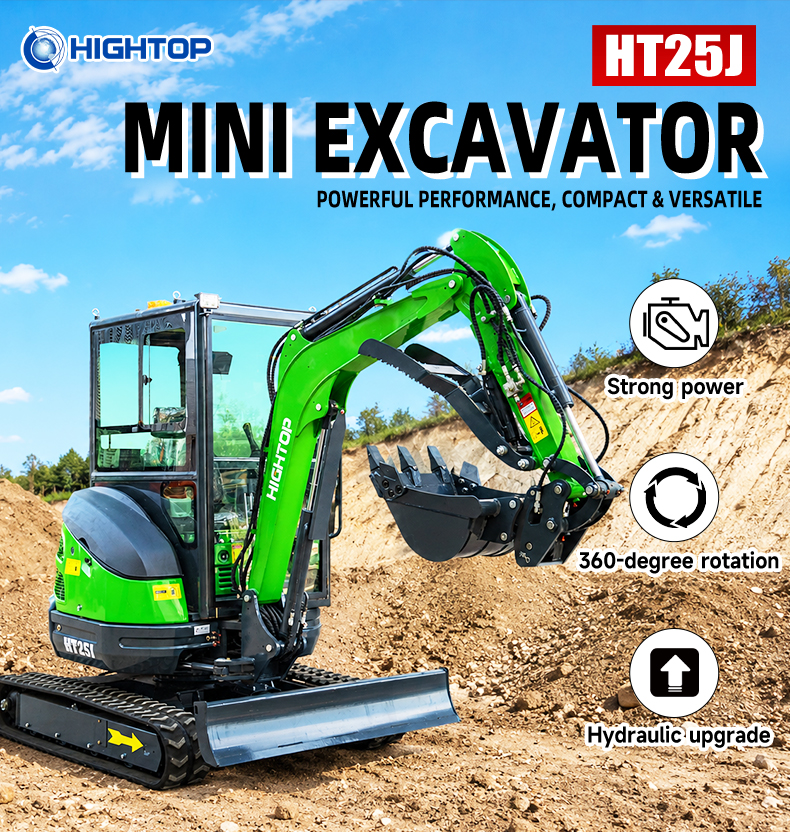

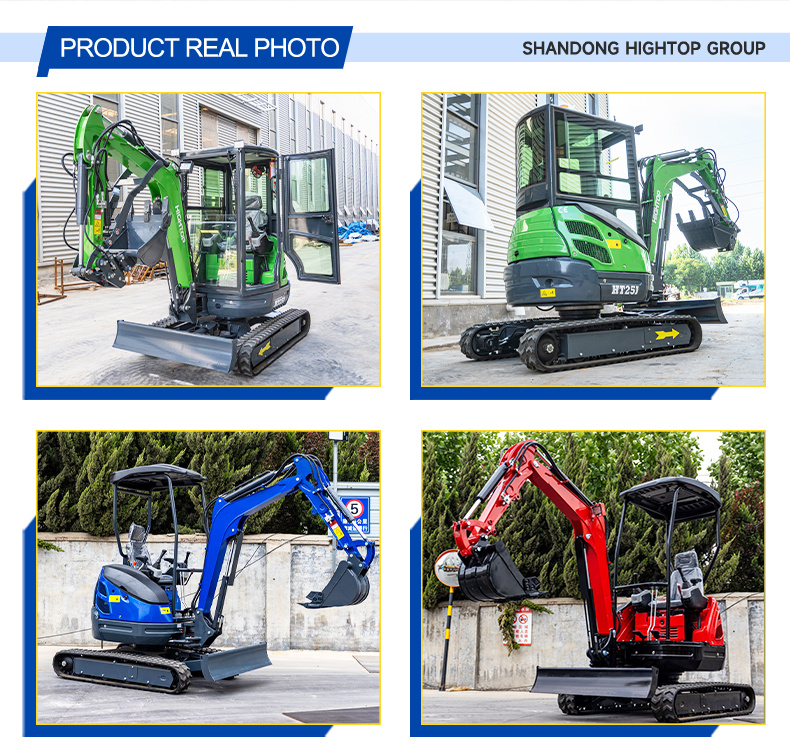

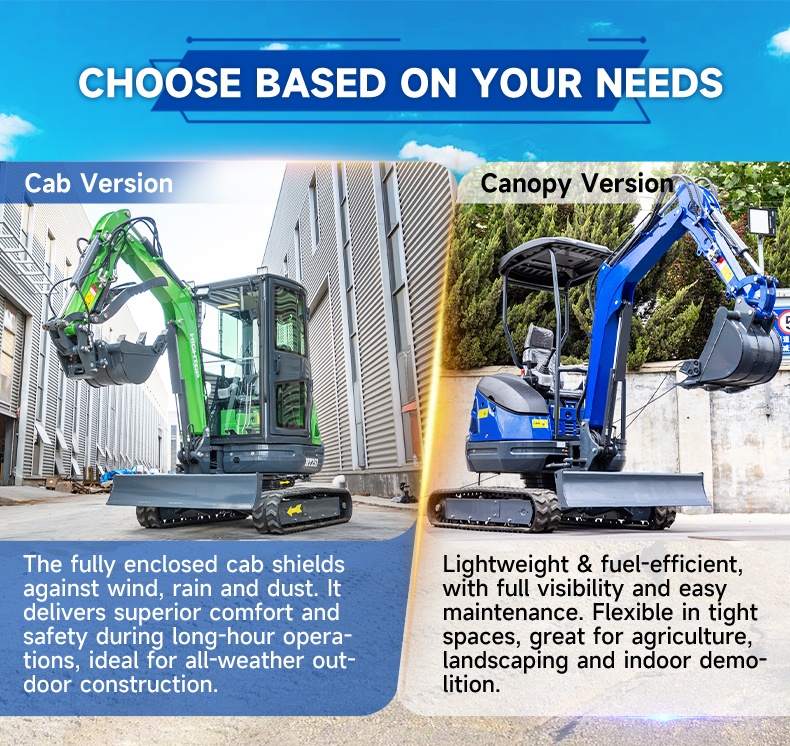

The HT25J is Shandong Hightop's flagship 2.5-tonne class tracked mini excavator designed for export. With its compact design, agile handling and reliable power, it is suitable for a wide range of applications, including confined spaces, agricultural and landscaping work, municipal projects and indoor construction. The machine has obtained international certifications such as CE, ISO, EPA and Euro 5, and its quality meets both domestic and international construction standards, making it a workhorse model for small-scale and micro-scale engineering projects.
|

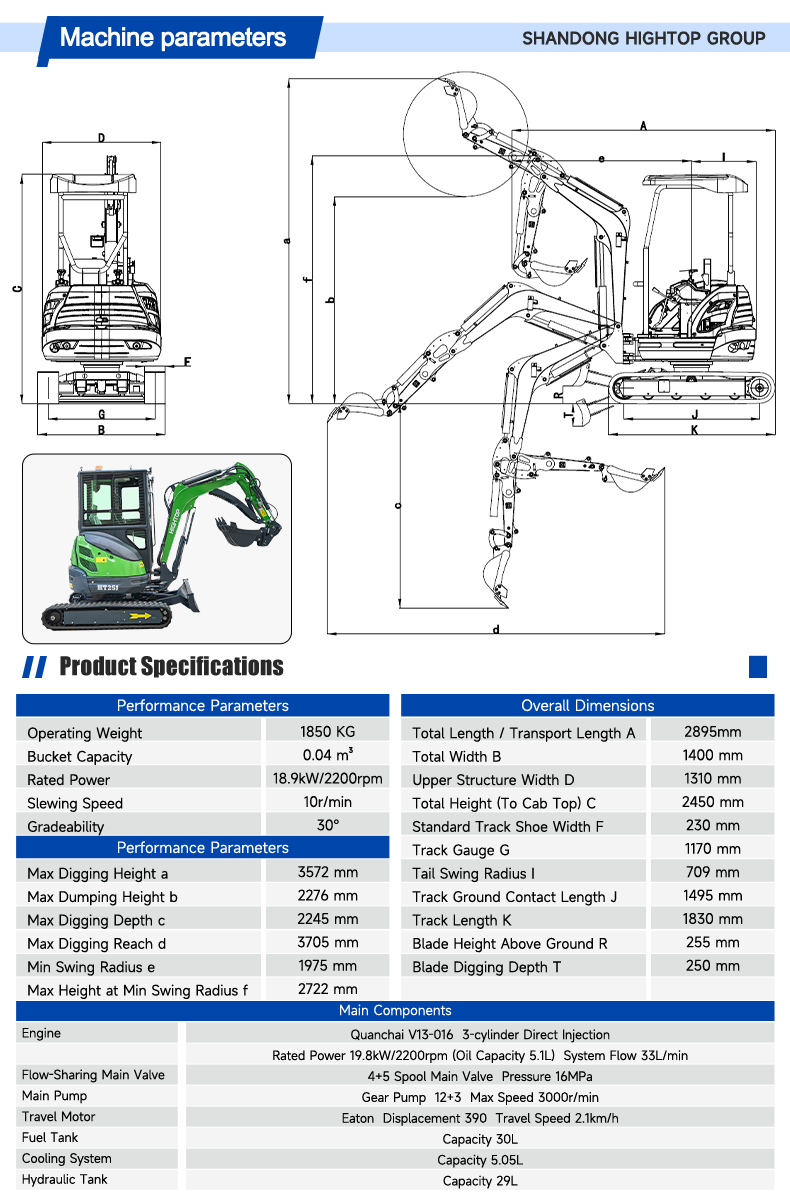

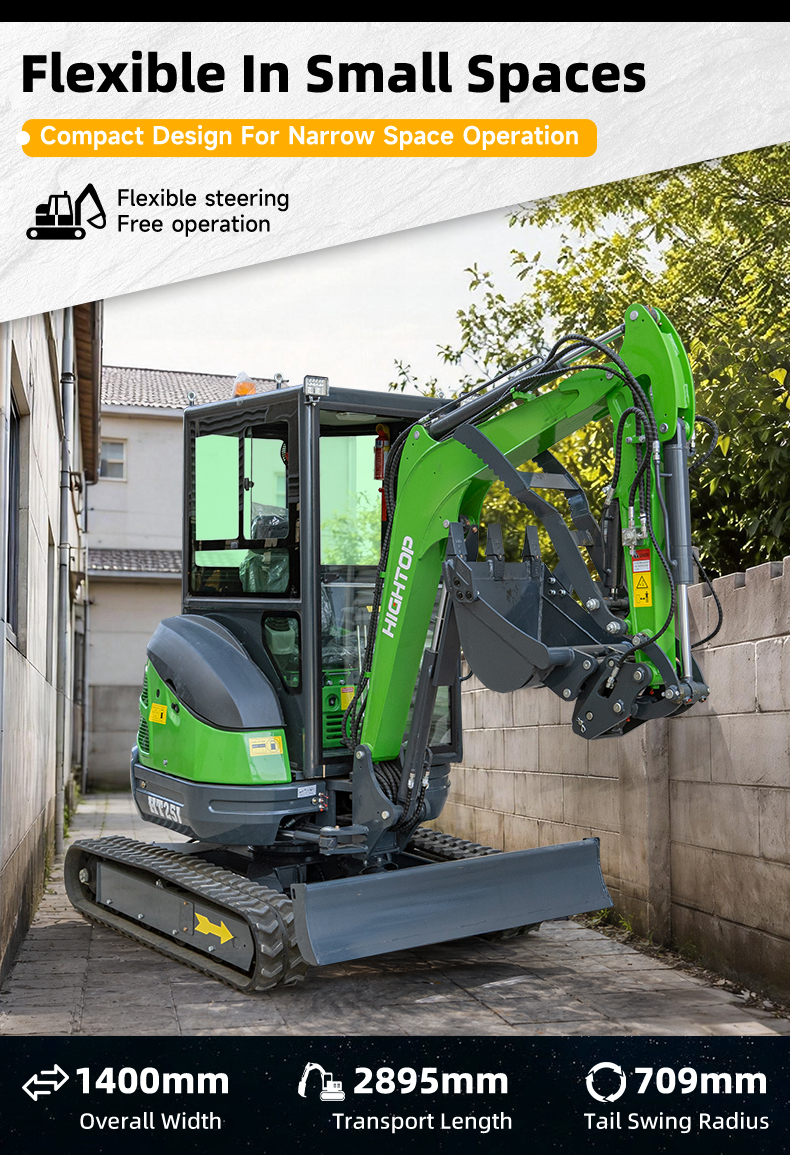

Overall dimensions ( mm) |
|
|
Overall length/Shipping length A |
2895 |
|
Total width B |
1400 |
|
Upper width D |
1310 |
|
Overall height (top of cab) C |
2450 |
|
Standard track pad width F |
230 |
|
Track gauge G |
1170 |
|
Turning radius at the rear I |
709 |
|
Track contact length J |
1495 |
|
Track length K |
1830 |
|
Height of the dozer blade above the ground R |
255 |
|
Bucket digging depth T |
250 |
|
Technical Specifications |
|
|

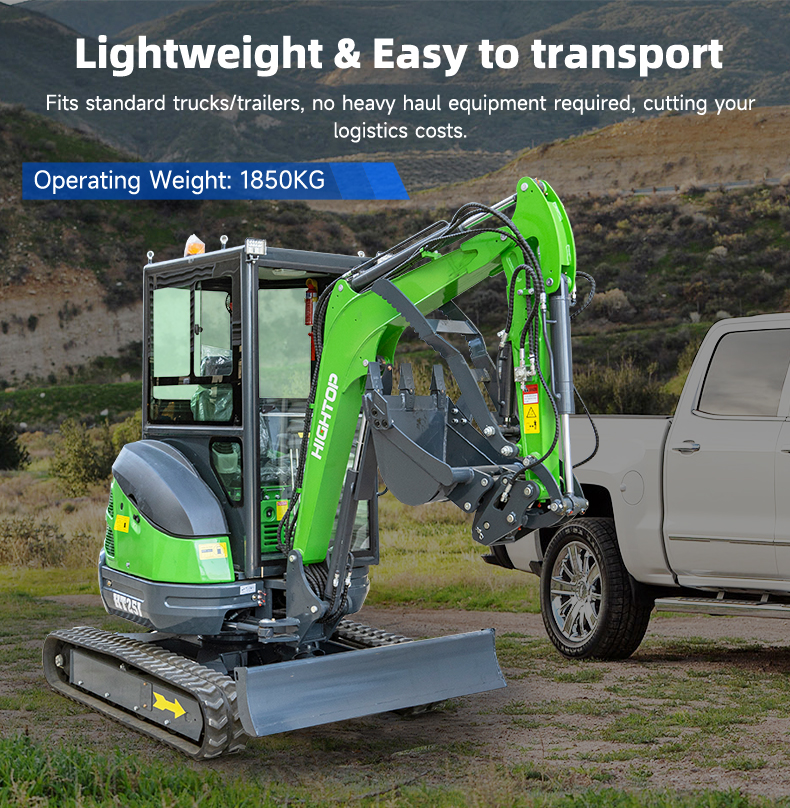

Work quality (KG) |
1850 |
|
Bucket capacity (m³) |
0.04 |
|

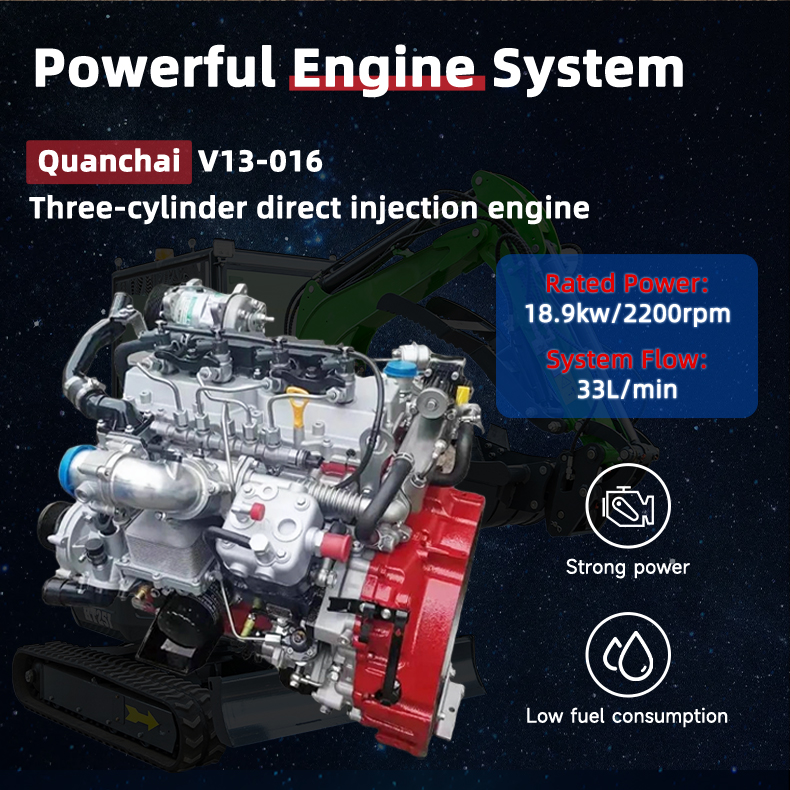

Rated power |
18.9kw/2200rpm |
|
Rotational speed |
10r/min |
|

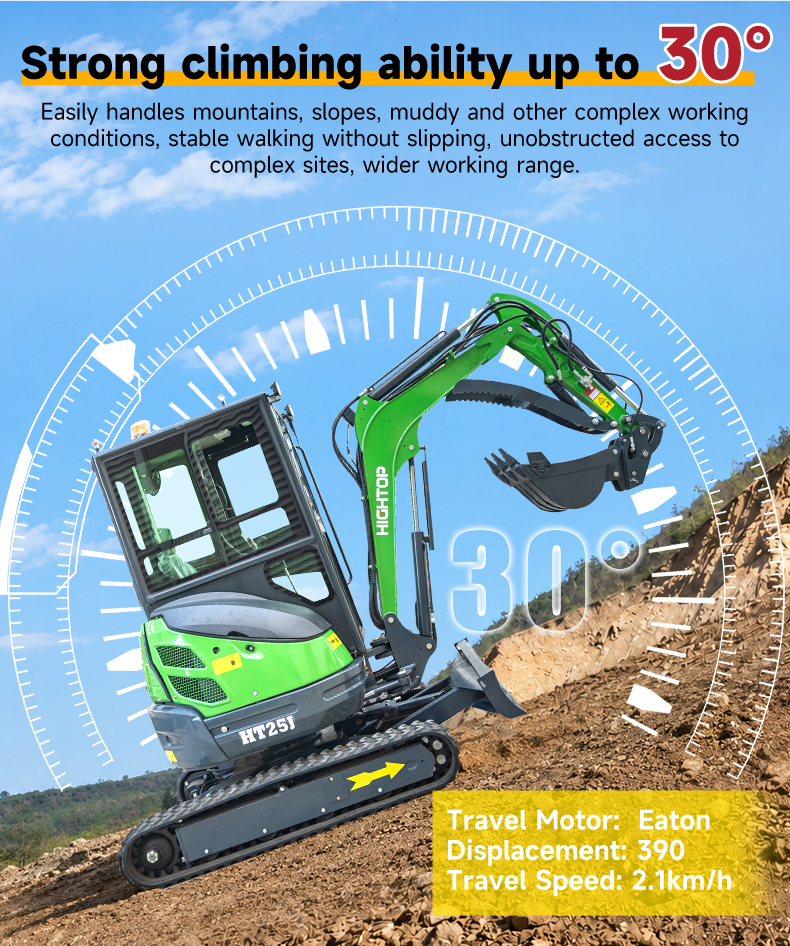

Hill-climbing ability |
30 degrees |
|
Working range ( mm) |
|
|
Maximum digging height a |
3572 |
|
Maximum unloading height b |
2276 |
|
Maximum digging depth c |
2245 |
|
Maximum excavation distance d |
3705 |
|
Minimum turning radius e |
1975 |
|
Maximum height f at the minimum turning radius |
2722 |
