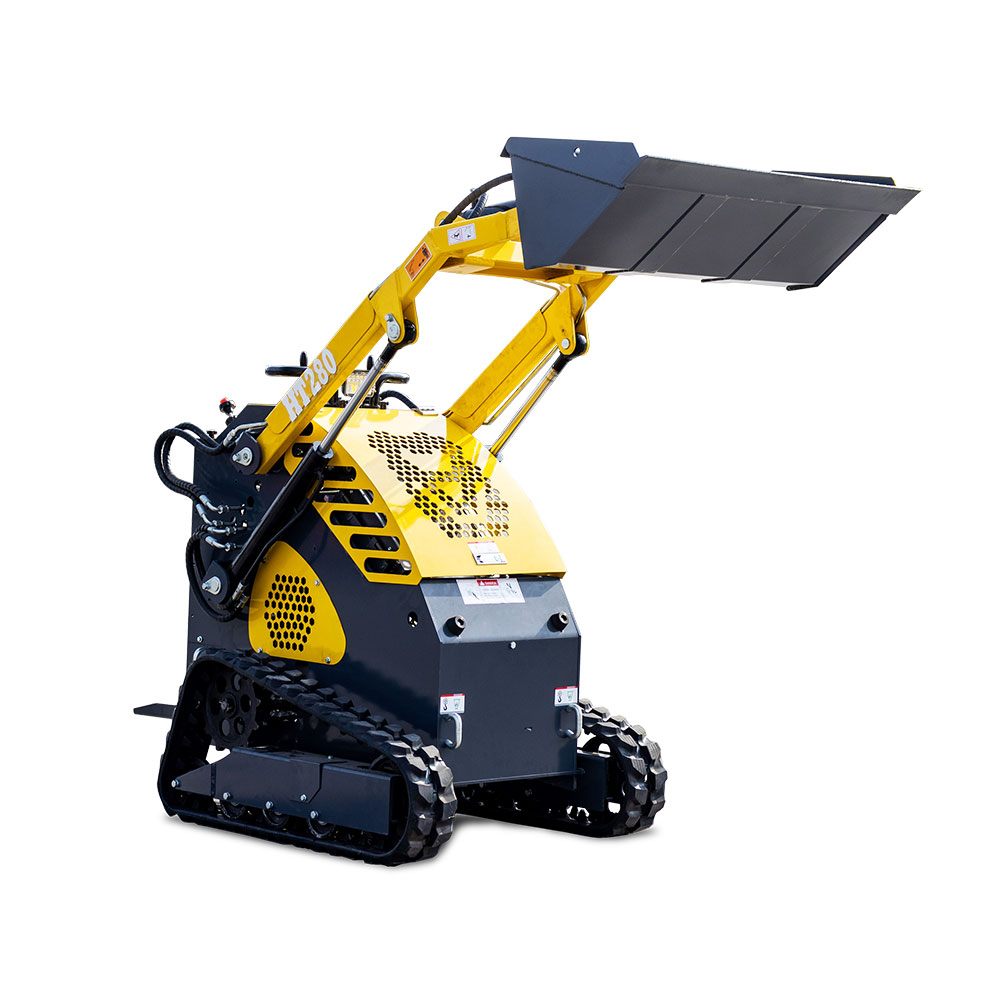

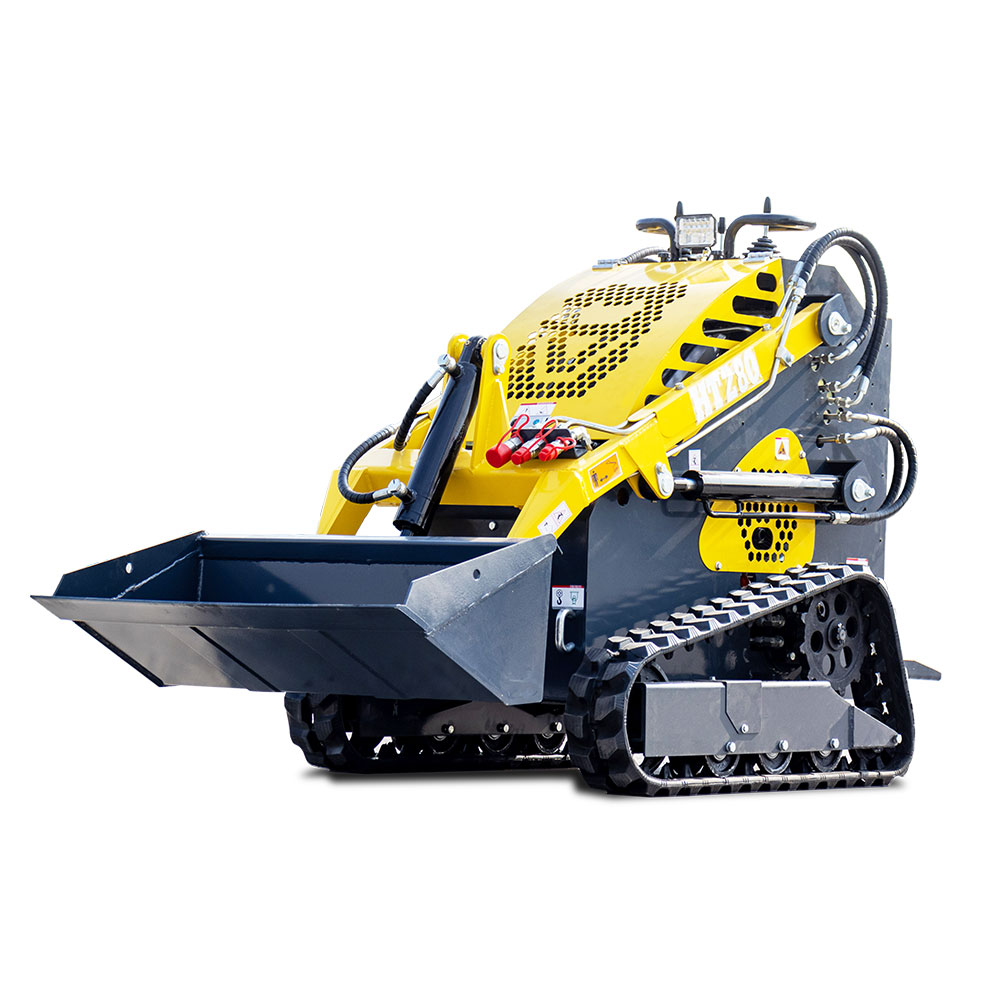

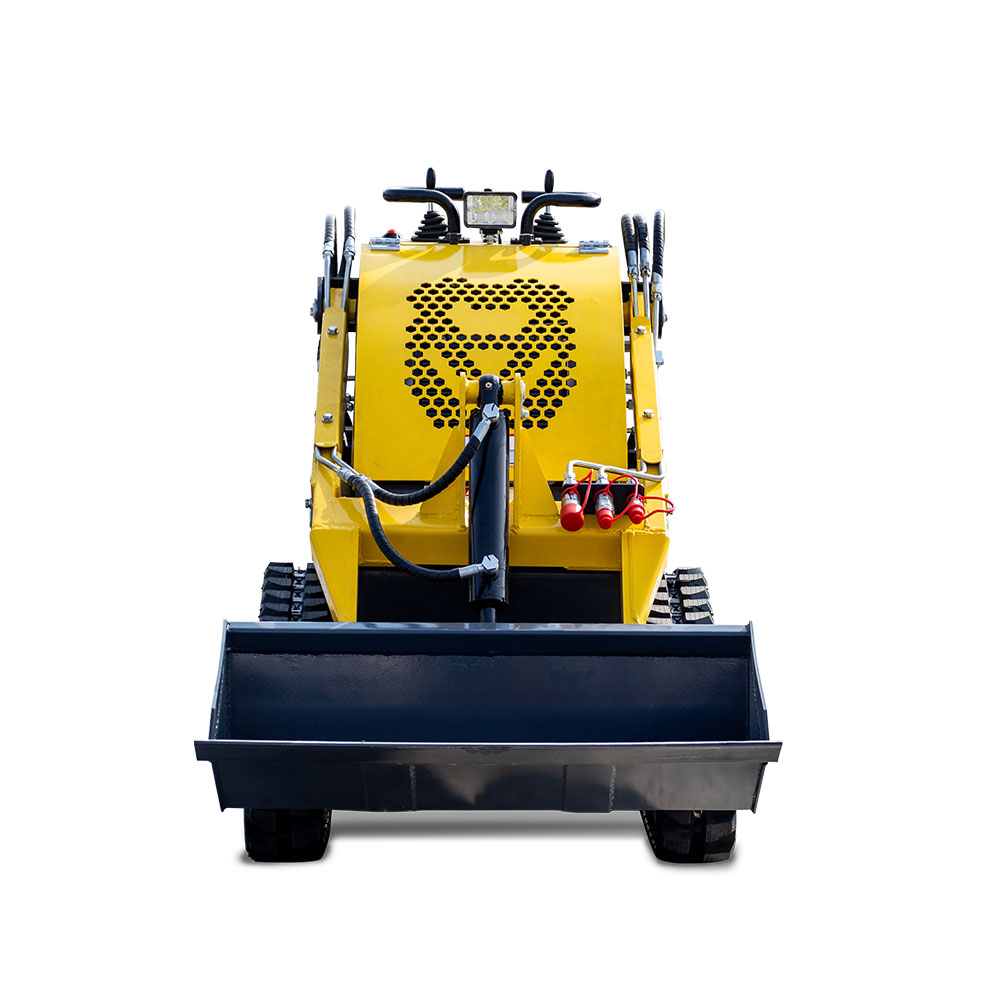

MGS280L Skid Steer Loader
|
Model:MGS280L |
|||
|
Engine Brand |
BRIGGS & STRATTON Engine |
Maximum operating height |
2490 |
|
Scheduled power |
13.5KW |
Height to bucket pin |
1670 |
|
Nominal speed |
3000rpm |
Overall vehicle height |
1390 |
|
Number of cylinders |
1 |
Maximum height with bucket flat |
2180 |
|
Intake mode |
Natural |
Overall length without attachments |
1540 |
|
Displacement |
420cc |
Overall length with standard bucket |
2160 |
|
Emission standard |
Euro 5-EPA |
Maximum height unloading angle |
139 |
|
Rated load |
200kg |
Unloading height |
1564 |
|
Maximum load |
300kg |
Unloading distance |
446 |
|
Maximum lifting force |
350KN |
Bucket turning angle at ground level |
25° |
|
Travelling speed |
0-6km/h |
Turning angle of the bucket at maximum |
115° |
|
Working three and |
9s |
Bucket volume |
0.06m³ |
|
Working system pressure |
17-21bar |
Operating mass |
900kg |
|
Fuel tank volume |
5L |
Track type |
150*36*72 |
