MGS125 Skid Steer Loader

The MGS125 is an engineering machine suitable for a variety of work scenarios. With its stable performance, reliable power configuration, and reasonable size design, it can meet the needs of different

MGS125 Skid Steer Loader Description

MGS125 Skid Steer Loader Instruction

The MGS125 is an engineering machine suitable for a variety of work scenarios. With its stable performance, reliable power configuration, and reasonable size design, it can meet the needs of different working environments.

In terms of performance, the MGS125 offers excellent load-bearing and operational capabilities. With a working weight of 5,100 kg and a rated load capacity of 1,500 kg, it is equipped with a bucket volume of 0.75 m³, enabling it to handle a wide range of material loading tasks. Its maximum travel speed of 12/18 km/h facilitates flexible movement between work sites; with a maximum traction force of >32 kN, a maximum digging force of ≥22 kN, and a boom lifting time of 7 seconds, enhancing efficiency during operations.

In terms of the engine, the MGS125 is equipped with a Weichai WP4.1 engine, with a rated power of 103 kW/rpm (at 2,300 rpm) and a displacement of 4.088 L, meeting National III emission standards. This engine provides continuous power support for the equipment while meeting environmental requirements, making it suitable for operation in various environments.

In terms of dimensions, the MGS125 is designed with operational adaptability and convenience in mind. The maximum operating height is 4070 mm, the bucket pin height is 3150 mm, and the cab top height is 2160 mm, providing operators with a relatively comfortable operating space and visibility. The total length without the bucket is 3,000 mm, and with the bucket, it is 3,795 mm. The wheelbase is 1,500 mm, with turning radii of 1,365 mm (without the bucket), 2,200 mm (front), and 1,742 mm (rear), enabling operation in spaces with limited room. Additionally, parameters such as a 2,450 mm unloading height, 700 mm unloading distance, and a maximum unloading angle of 40° further enhance operational flexibility, accommodating various unloading scenarios.

The MGS125 demonstrates its comprehensive performance in municipal construction, agricultural production, and small-scale engineering projects, providing robust support for operational tasks.

MGS125 Skid Steer Loader Parameter



Model

MGS125

Performance

Operating weight(kg)

5100

Rated load(kg)

1500

Bucket capacity(m³)

0.75

Max Speed(km/h)

12/18

Max traction(kN)

>32

Max breakout(kN)

≥22

Lifting time of boom(s)

7

Engine

Manufacturer

WEICAI

Model

WP4.1

Rated power(kW/rpm)

103/2300

Engine displacement(L)

4.088

Emission Standard

National Standard III

Dimension

Overall operating height(mm)

4070

Height to bucket hinge pin(mm)

3150

Height to top of cab(mm)

2160

Height to bottom of level bucket(mm)

2983

Without bucket length(mm)

3000

Overall length with bucket(mm)

3795

Dumping angle at maximum height(°)

40

Dumping height(mm)

2450

Dumping reach(mm)

700

Rollback of bucket on ground(°)

30

Rollback of bucket at full height(°)

104

Wheelbase(mm)

1500

Ground clearance(mm)

200

Angle of departure(°)

20

Front turning radius without bucket(mm)

1365

Front tuning radius(mm)

2200

Rear tuning radius(mm)

1742

Rear axle to bumper(mm)

938

Tread width(mm)

1674

Width(mm)

2124

Bucket width(mm)

2134

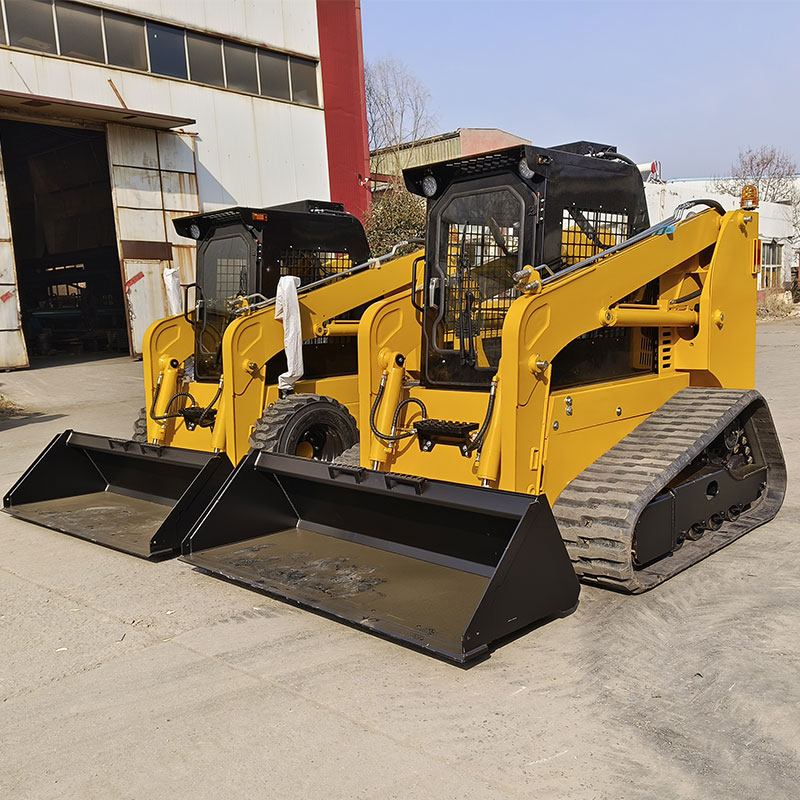

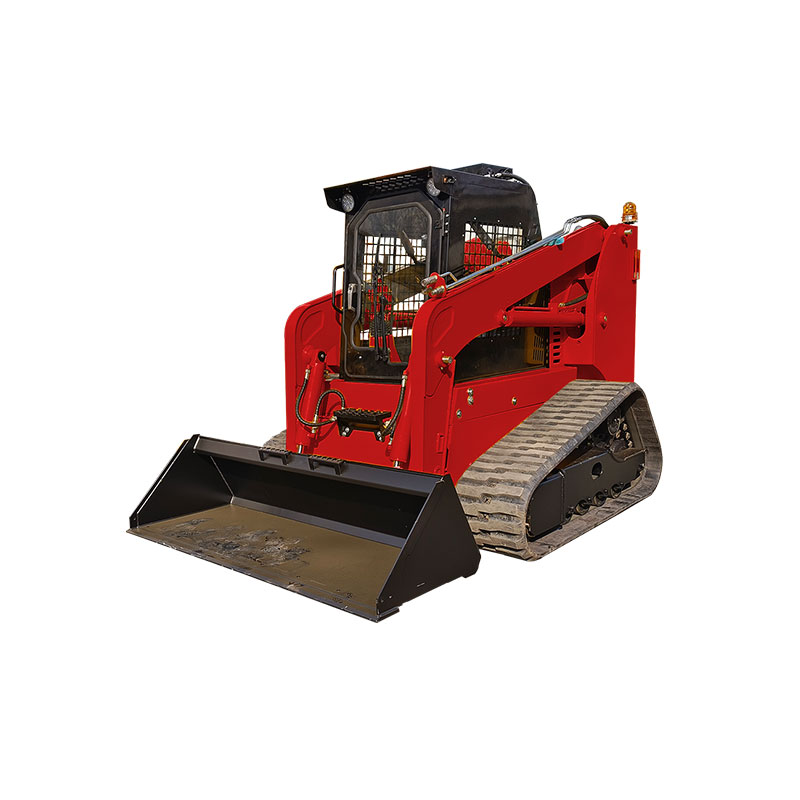

MGS125 Skid Steer Loader Images
