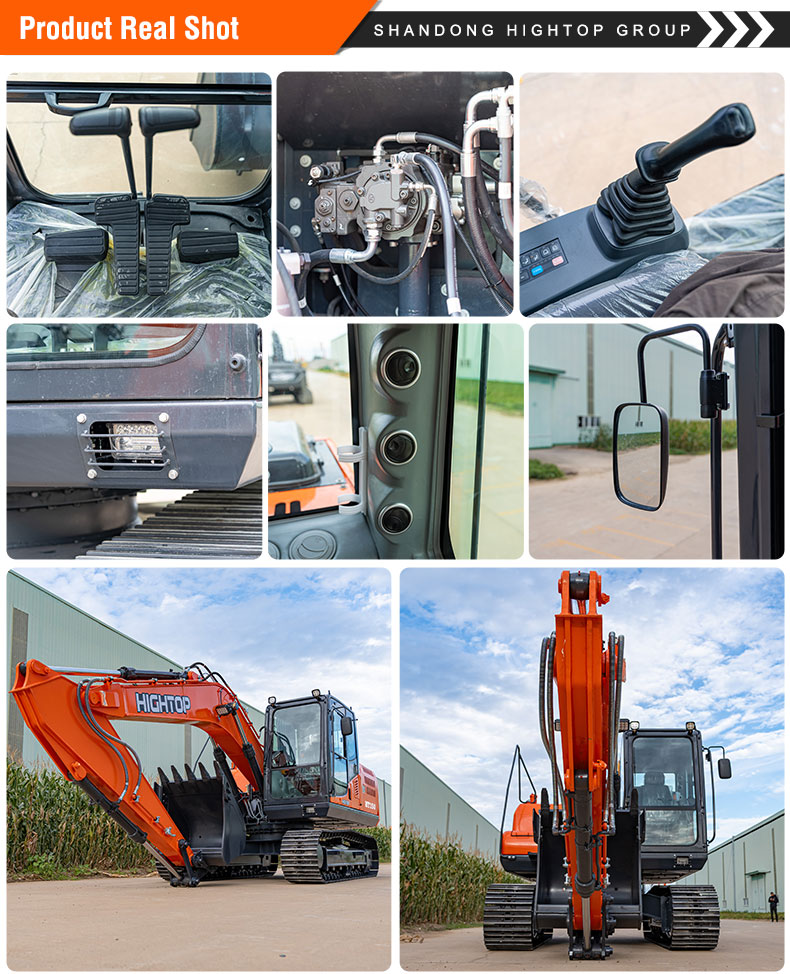

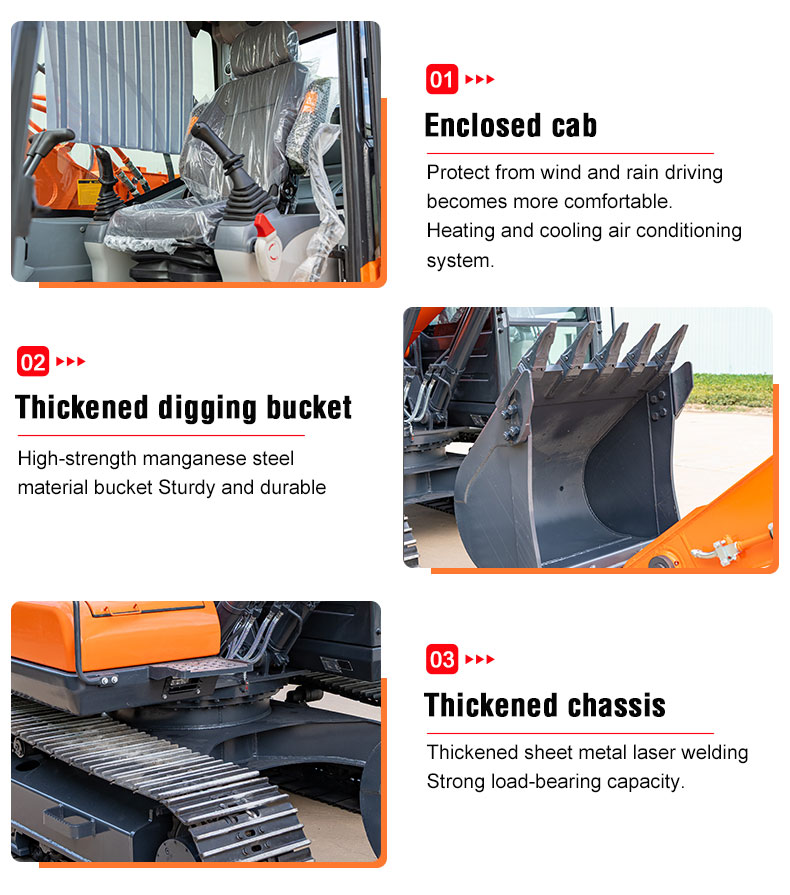

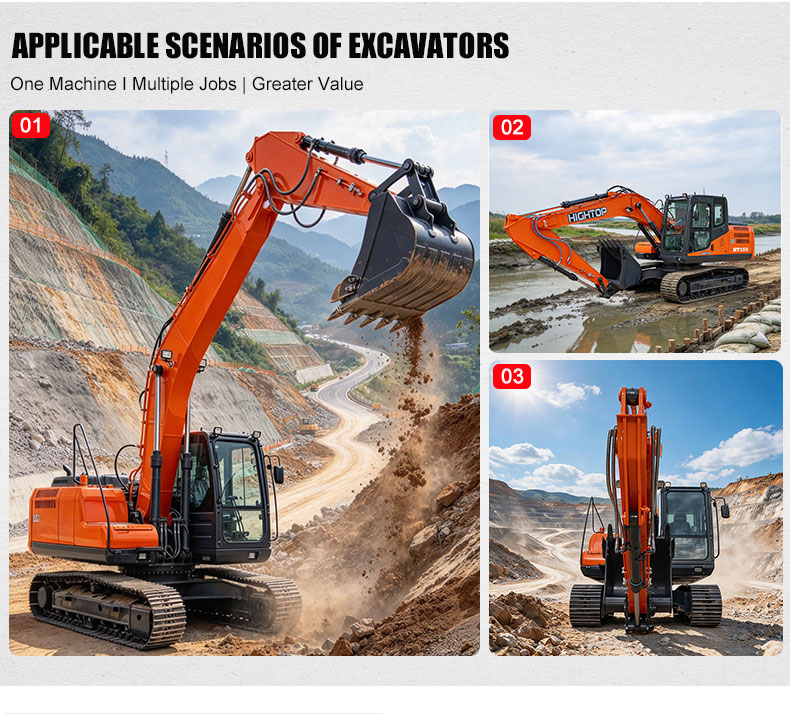

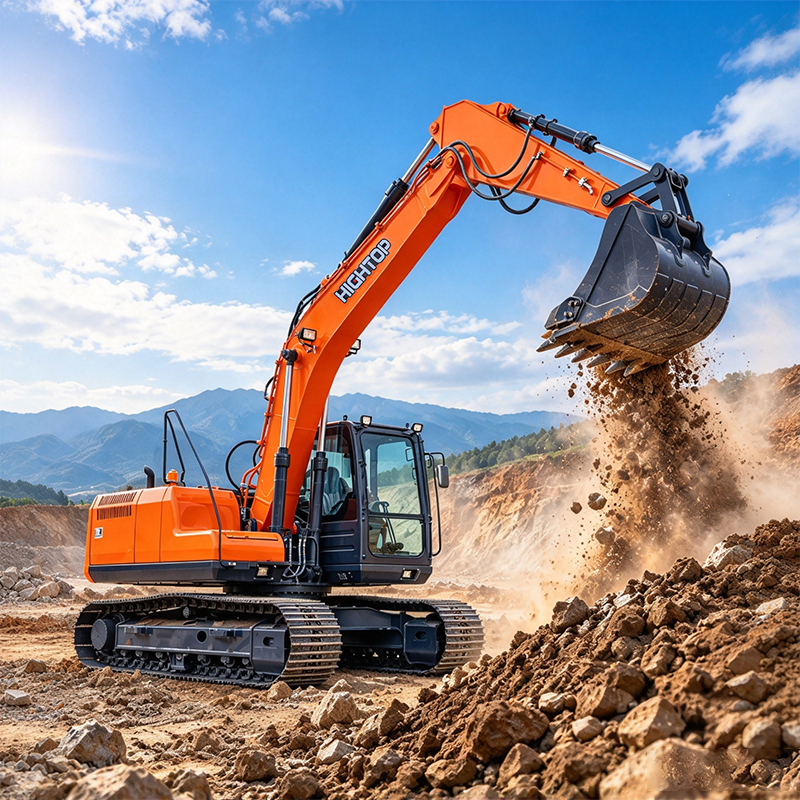

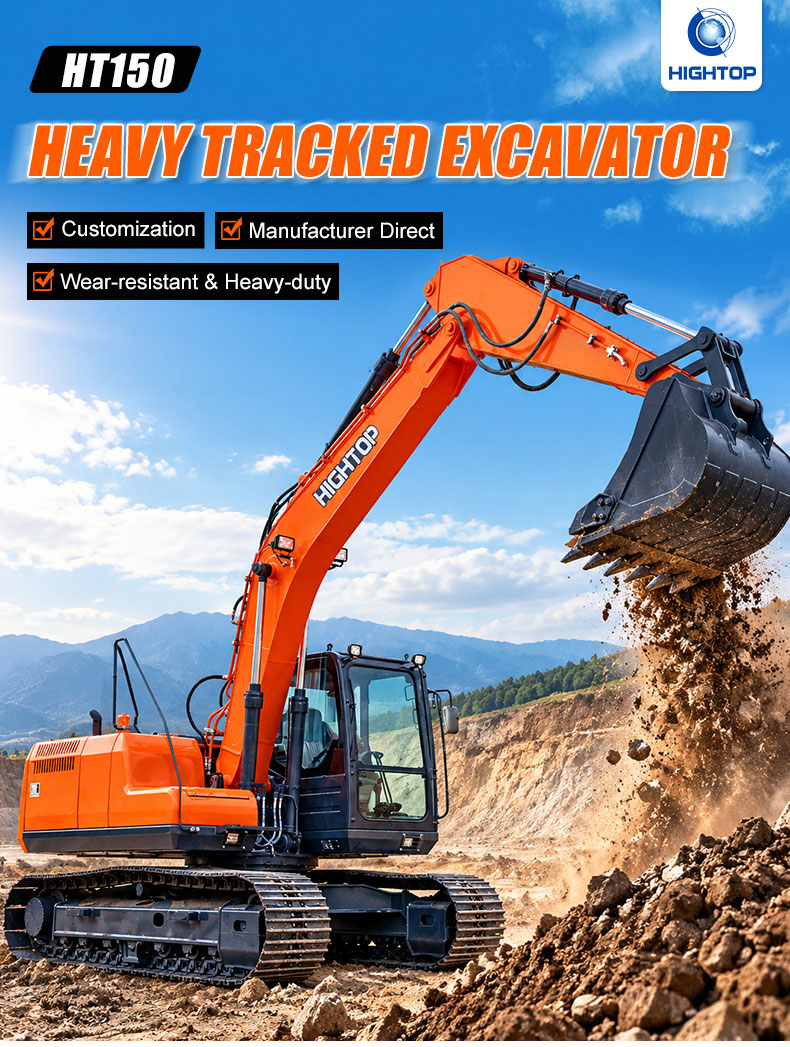

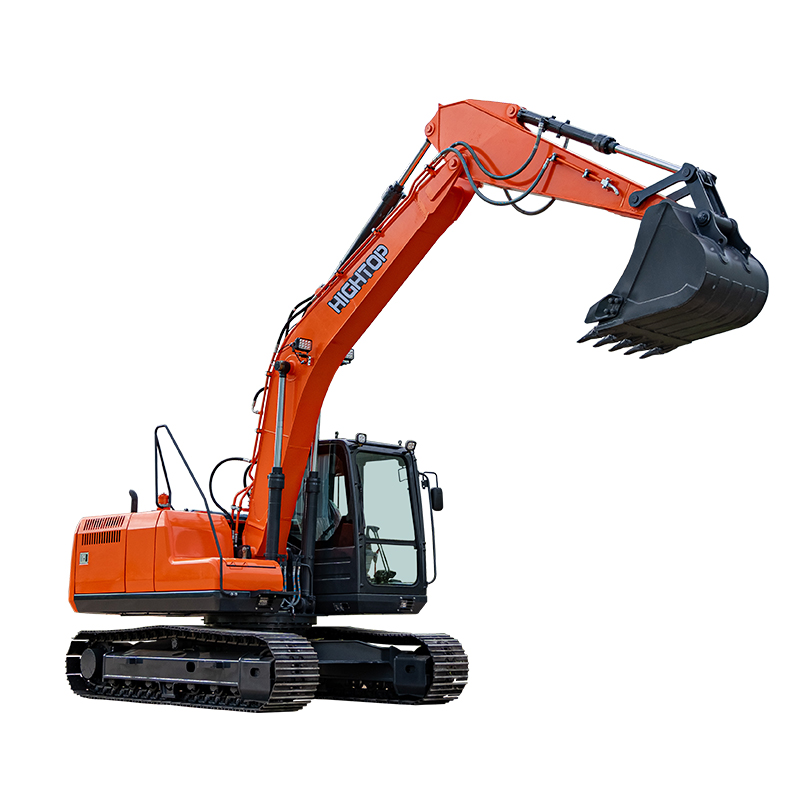

The HT-150 full hydraulic crawler excavator is a versatile 14.8-ton construction machine designed for optimal performance across multiple working scenarios. With powerful output and flexible operation capabilities, it supports various attachments to enhance working efficiency and adaptability.
|

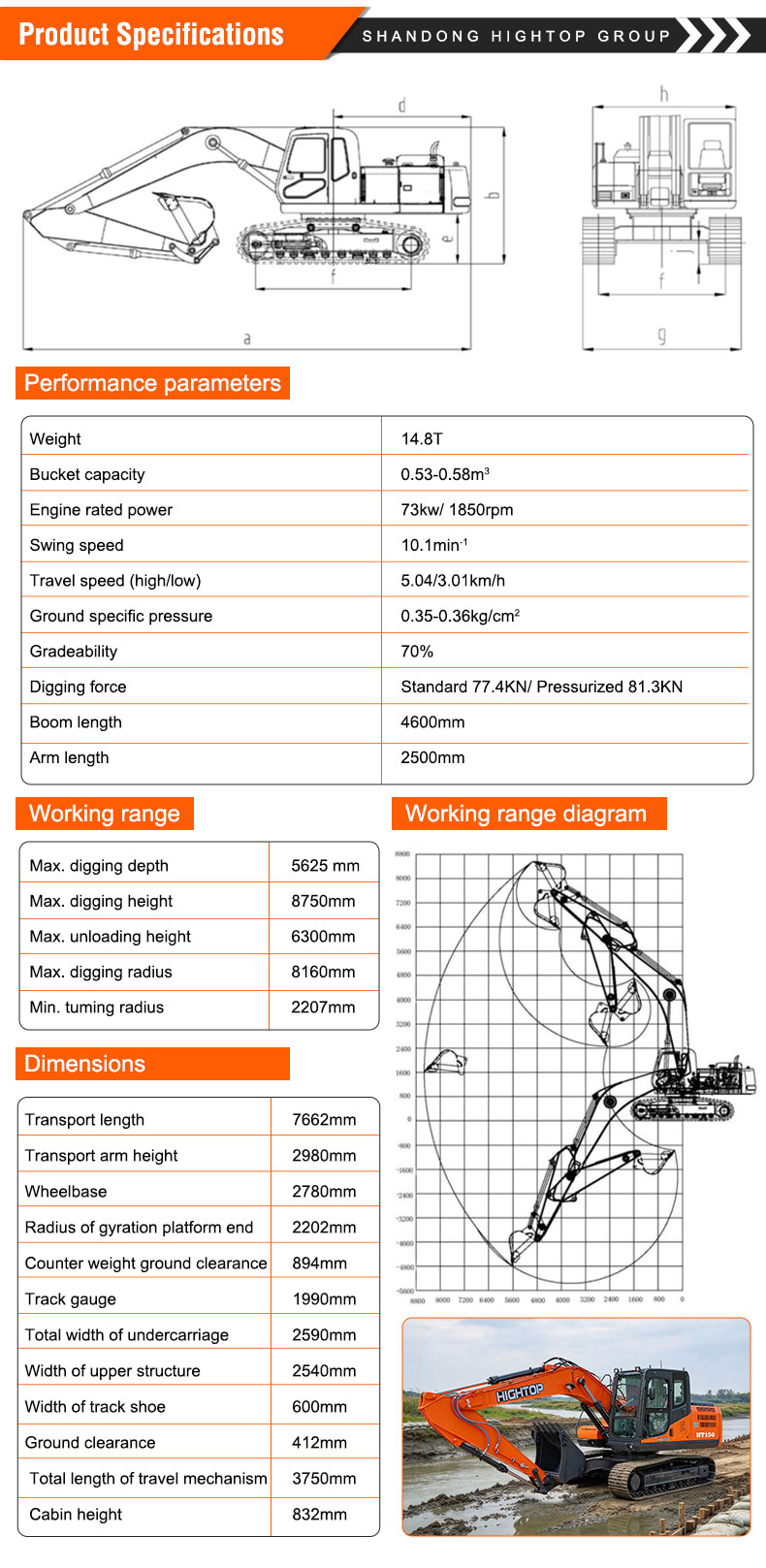

Weight |
14.8T |
|
Bucket capacity |
0.53-0.58m² |
|

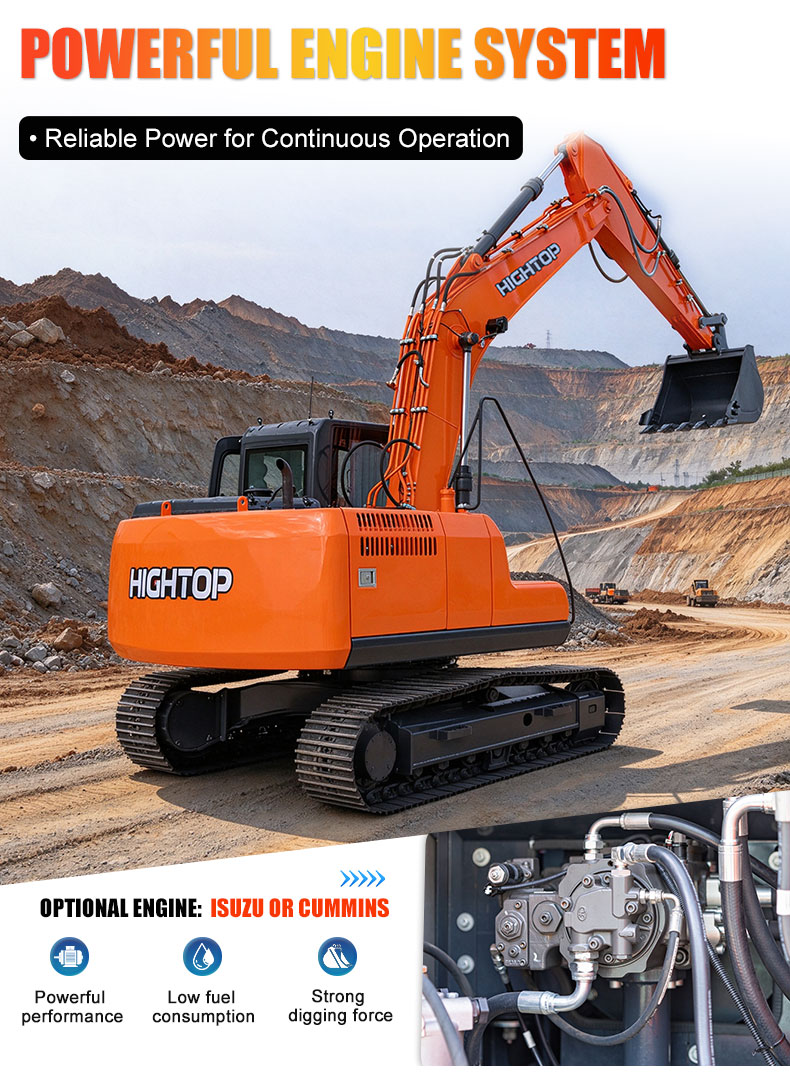

Engine rated power |
73kw/1850rpm |
|
Swing speed |
10.1min⁻¹ |
|
Travel speed (high/low) |
5.04/3.01km/h |
|

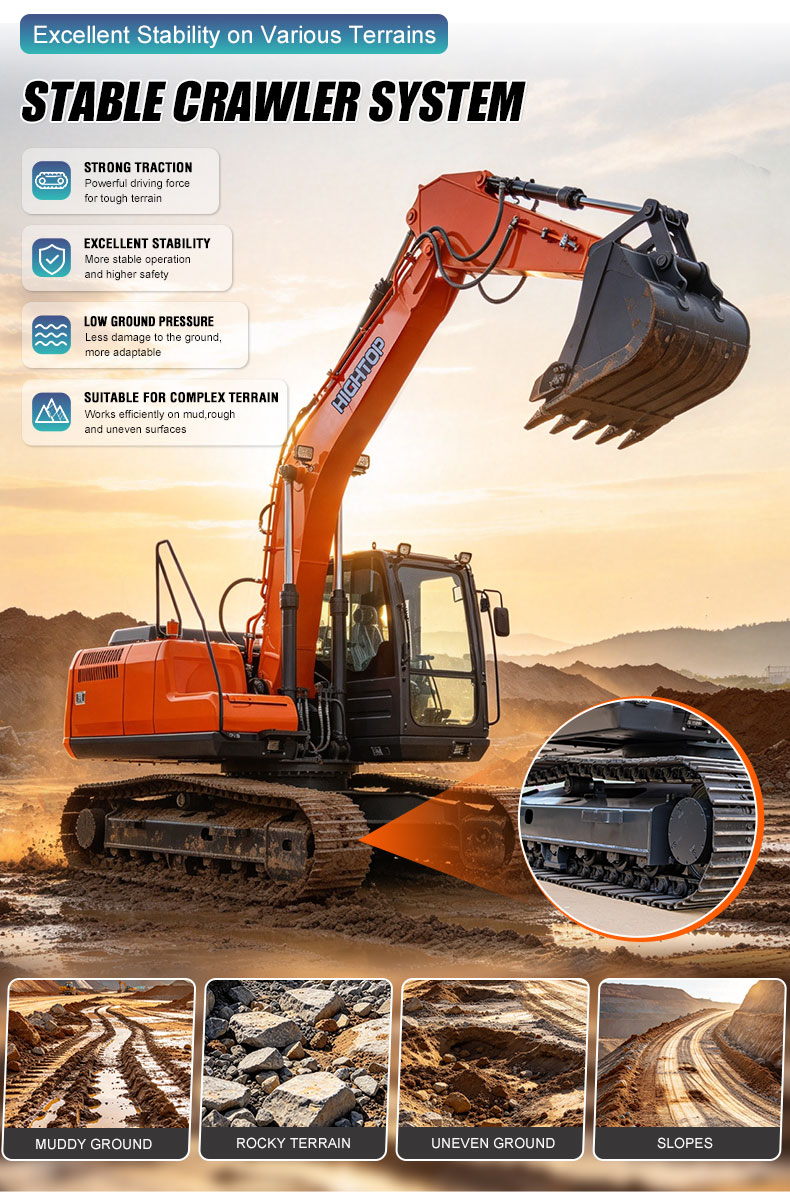

Ground specific pressure |
0.35-0.36kg/cm² |
|
Gradeability |
70% |
|

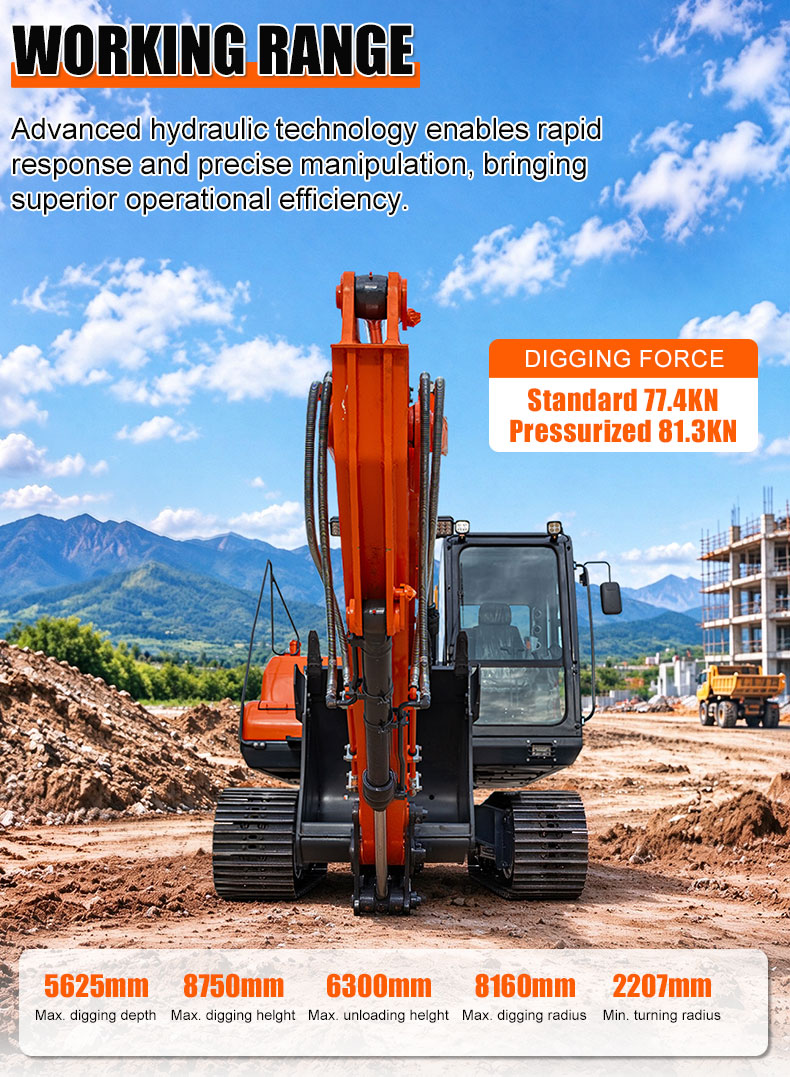

Digging force |
Standard 77.4KN / Pressurized 81.3KN |
|
Boom length |
4600mm |
|
Arm length |
2500mm |
|
Max. digging depth |
5625 mm |
|
Max. digging height |
8750 mm |
|
Max. unloading height |
6300mm |
|
Max. digging radius |
8160mm |
|
Min. turning radius |
2207mm |
|
Transport length |
7662mm |
|
Transport arm height |
2980mm |
|
Wheelbase |
2780mm |
|
Radius of gyration platform end |
2202mm |
|
Counter weight ground clearance |
894mm |
|
Track gauge |
1990mm |
|
Total width of undercarriage |
2590mm |
|
Width of upper structure |
2540mm |
|
Width of track shoe |
600mm |
|
Ground clearance |
412mm |
|
Total length of travel mechanism |
3750mm |
|
Cabin height |
832mm |
